GASEOUS FLOODING

Total Room Gaseous Fire Suppression Systems

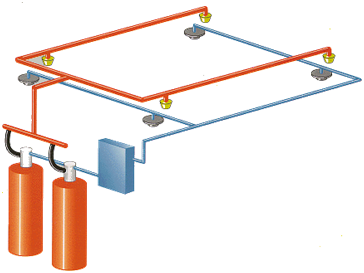

Gaseous fire suppression is a term to describe the use of inert gases and chemical agents to extinguish a fire. Also called Clean Agent Fire Suppression. These Agents are governed by the NFPA Standard for Clean Agent Fire Extinguishing Systems – NFPA 2001 in the USA, with different standards and regulations in other parts of the world. The system typically consists of the agent, agent storage containers, agent release valves, fire detectors, fire detection system (wiring control panel, actuation signaling), agent delivery piping, and agent dispersion nozzles. Less typically, the agent may be delivered by means of solid propellant gas generators that produce either inert or chemically active gas.

Low Pressure Clean Agent- Chemical Gas Extinguishing Systems

• Systems are notable for its rapid action and high degree of safety, making it optimal for protecting occupied areas and high value enclosures. Must for Server Rooms, Data Centers, Record Rooms, Control Rooms, Museums and High Value Assets.
• We Supply and Install all of our systems in compliance with NFPA 2001 and ISO 14560 Standards.NOVEC 1230 – 25 Bar UL Approved and FM Certified
• NOVEC 1230 – 34.5 Bar UL Approved and FM Certified.
• NOVEC 1230 – 42 Bar VDS Approved.
• FM200 (HFC 227ea) – 25 Bar UL Approved and FM Certified.
• FM200 (HFC 227ea) – 42 Bar VDS Approved.
• The systems are filled in UL approved filling plant owned by SVS at Delhi.

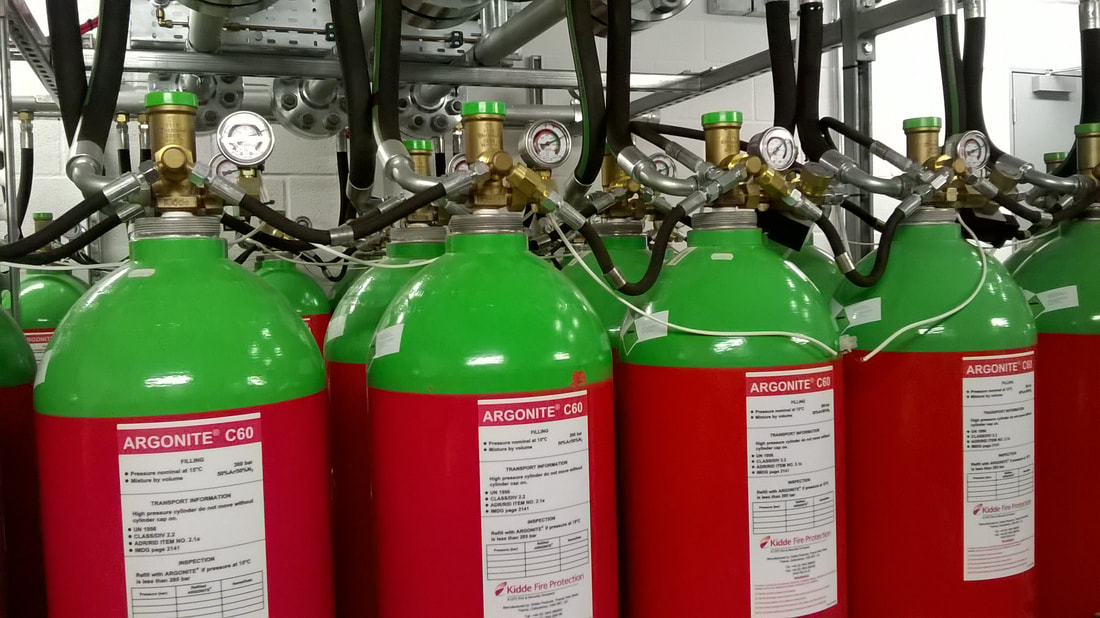

High Pressure Inert Gas Fire Suppression System

The extinguishing mechanisms are the environmentally friendly. Their high operating pressure allows piping systems with long runs and many direction changes. They maintain oxygen levels appropriate for use in occupied areas like Control Rooms, Data Centers, Server Rooms, Storage Areas, etc.

We Supply and Install all of our systems in compliance with NFPA 2001 and ISO 14560 Standards.

• IG 541 (200 and 300 Bar) -
• IG 100/ NN 100 –
• IG 55.
• IG 01.
