Our Most Advanced Panel

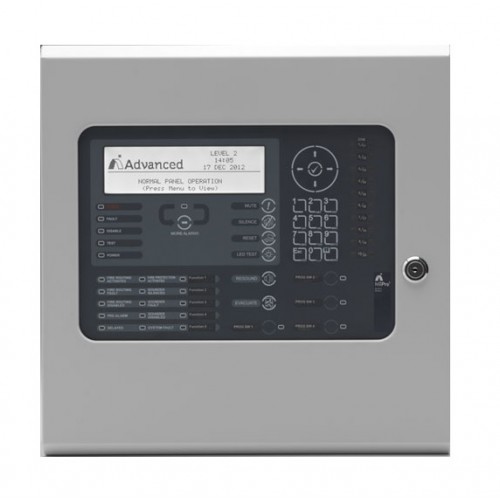

Hampton is our highest performance, analogue addressable fire panel and is fully approved to EN54 Parts 2, 4 and 13.
Hampton is the result of decades of are alarm and detection experience and research and development involving installers, specifiers, consultants and end users across the world.
Hampton has been designed to offer industry leading power and performance. It packs more configuration, display, status and control options into its interface as standard than any other Advanced are panel to date.
Every Hamton panel supports Advanced’s unbeatable networking capabilities as well as our Dynamix Tools are panel software making it both easy to use and configure, from the smallest to the largest of sites with the most complicated cause-and effects.
Features
- 1, 2, 4 or 8 loop formats
- Up to 254 devices per loop (protocol dependent)
- Up to 2,000 fire detection zones
- Over 200,000 devices per network
- True peer-to-peer networking
- Networkable up to 200 nodes
- Supports intelligent remote terminals, BMS interface, IP Gateway and I/O programmable I/O devices
- Built in oscilloscope, voltage and current meters
- Circuit monitoring from any panel or repeater
- On board or optional remote battery temperature sensor
- Direct USB and RS232 PC connections
- Advanced’s simple select and click programming and configuration
- Autolearn and Loop Detection
- Quick start and protect - a working system after an Autolearn
- Peripheral expansion built in
- 20 built-in, fully programmable LEDs
- 4 programmable push buttons
- 5,000 event log entries
- Complete device history from each panel
- 200 programmable false alarm management areas per panel
- Programmable screen logo
- Timed enablement of isolated zones, input and output devices
- Advanced logic delivering huge configuration opportunities
- Approved to EN54 Parts 2, 4 and 13

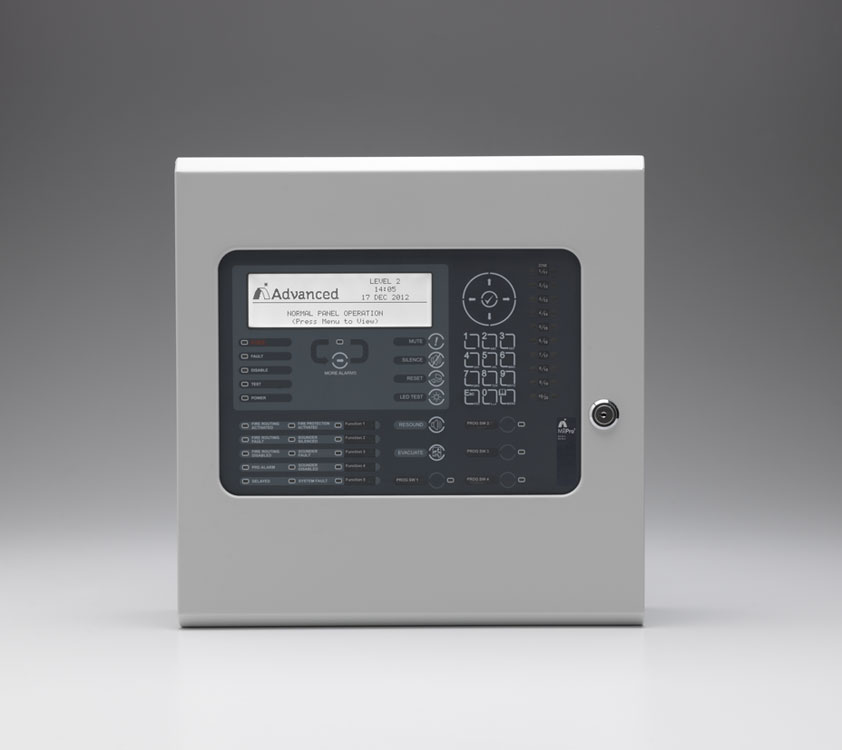

Hampton - I Loop
Maximum 7Ah internal batteries 20 programmable LEDs Optional programmable key switch Programmable Input Medium, Large and Deep enclosure options
- Single loop
- Small enclosure
- Maximum 7Ah internal batteries
- 20 programmable LEDs
- Optional programmable key switch
- Programmable In put
- Medium, Large and Deep enclosure options

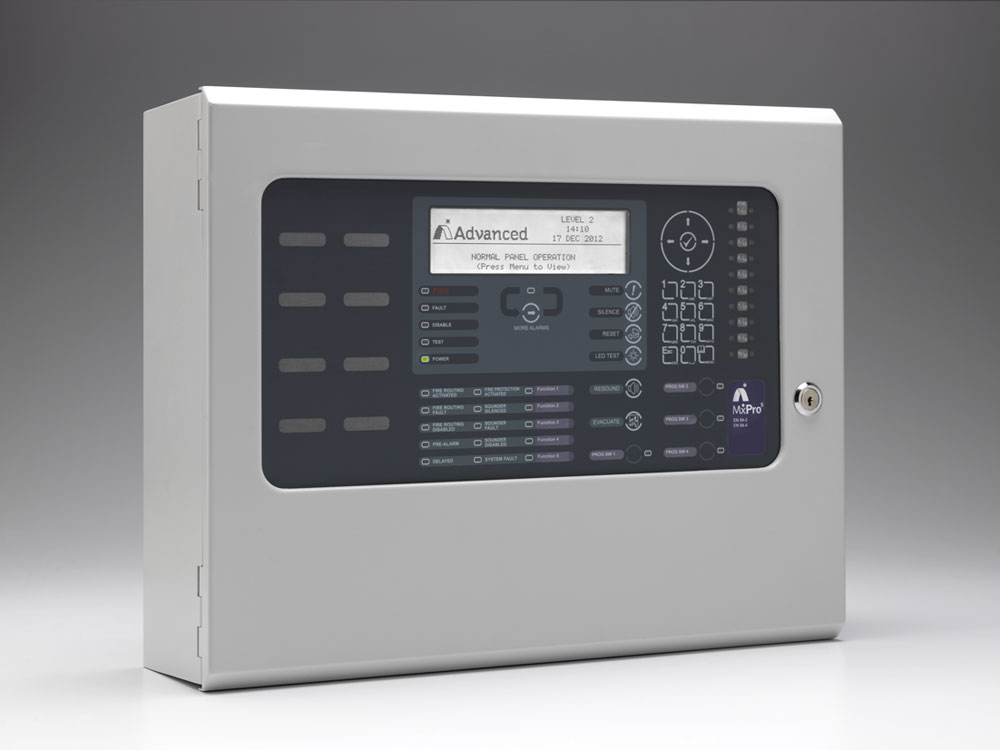

Hampton - 2 Loop
- One or two ioops
- Mediume nclosure
- Maximum l2Ah internal batteries
- Up to 50 additional programmable LEDs
- Up to 8 programmable key switches or 4 plus printer
- Plexi-glass door option
- Large and Deep enclosure options

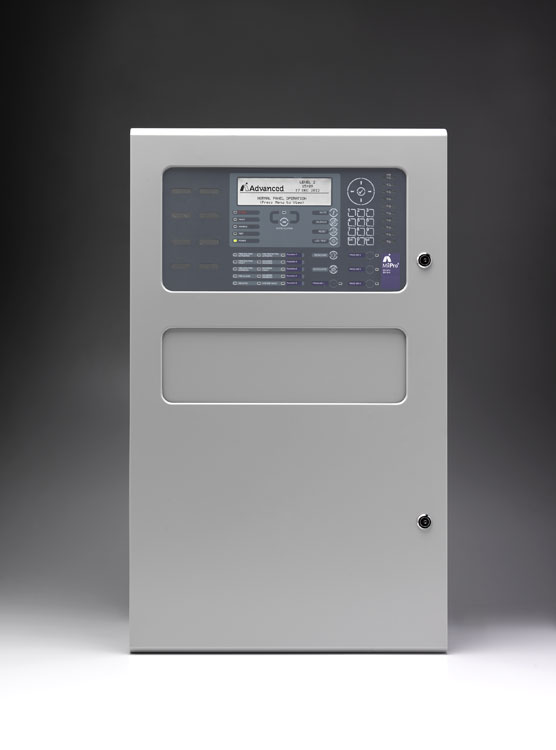

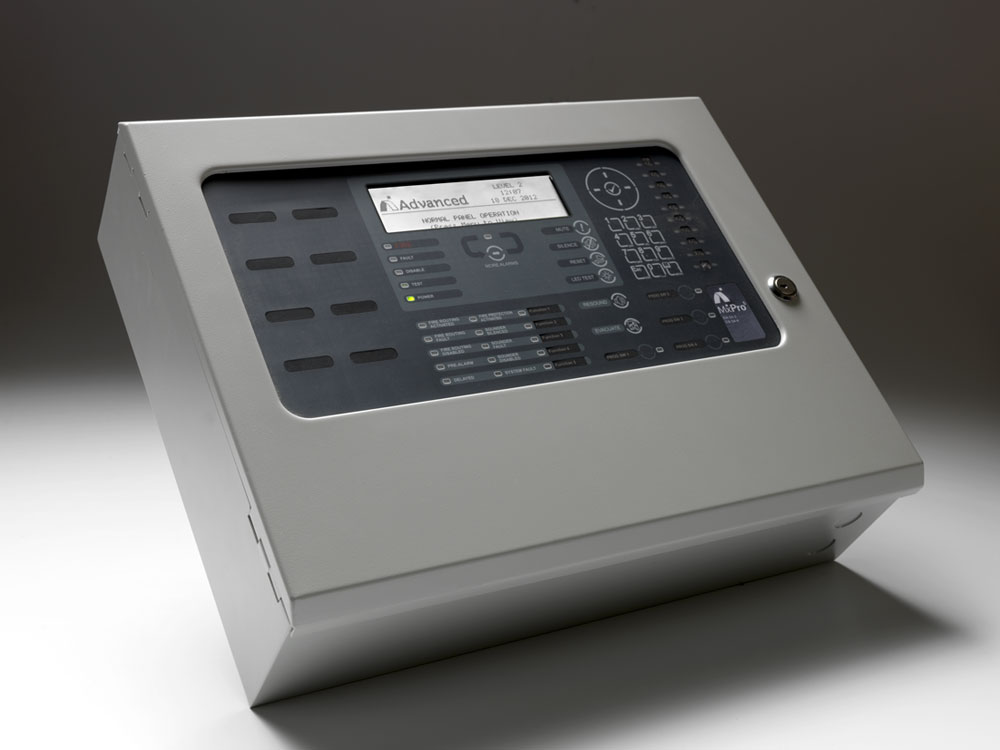

Hampton 4 Loop
- One to four loops
- Large enclosure
- Standard enclosure supports max 17Ah internal batteries. Deep Enclosure option supports max 45Ah
- Maximum 1 7Ah internal batteries
- Up to 200 additional programmable LEDs
- Up to 8 programmable key switches or 4 plus printer
- Plexi-glass door option Deep and Extended enclosure options
Hampton 8 Loop
- Two to eight loops
- Extended enclosure
- Maximum 4SAh internal batteries
- Up to 200 additional programmable LEDs,2 x switch cards or mimic
- Up to 8 programmable key switches or 4 plus printer
- Plexi-glass door and external battery box option
Hampton - Integrated Peripheral Bus
- Integrated P-Bus as standard
- Up to 32 expansion cards can be added to an Hampton panel
- Peripheral expansion option cards include
— 4 way relay card
— 4 way sounder card
— 10 way monitored input card
— Conventional zone card (8 class B or 4 class A zones + 3
programmable relays)
— 16 way push button / 48 LED card
— 16 way input /48 output (direct drive LED outputs)
— Fire and Fault Routing / Protection Card
— Redundant Controller
— Smoke Control Interface

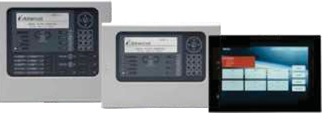

Hampton - Remote Terminals
- Peripheral expansion option cards include
— TouchControl touchscreen with active maps
— Remote Display Terminal
— Remote Control Terminal with additional Mute, Silence,
Reset and Resound keys
— Remote Control Terminal with additional LED status indication, four programmable push buttons, Mute, Silence, Reset, Resound,
Lamp Test and Evacuate Keys.
- Optional level 2 access enable key switch. (Not TouchControl).
- Integrated standard or fault-tolerant network interface with screen termination point
- Programmable display for up to 2,000 zones along with sector based controls
Hampton - Rack Mount
- Rack mountable control panels
- Additional 16U and 20U high TP55 enclosures
- Rack mount peripheral chassis plate, LED and switch card module options
- Dedicated Mimic door option
Hampton’s loop device range is high performance, easily installed and maintained and offers a range of features and benefits suitable for almost any configuration.Wired and wireless devices can be added to the same system, allowing Hampton to go as large and as wide as you need it. Detectors
come in a range of decorline finishes suitable for any location from sensitive, historic buildings to modern and industrial developments.
Detectors come in fully featured and ‘lite’ ranges allowing Hampton to fit financial as well as performance criteria. All devices are ultra-low current, allowing up to 240 devices per loop.
A complete conventional range is also available for use with Hampton control panels and interfaces.
Wired Range Sensors and Bases

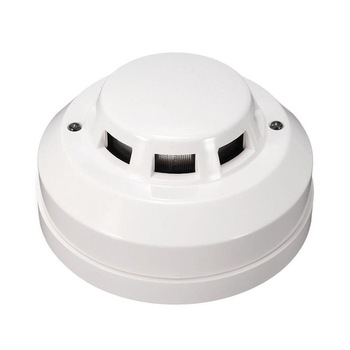

Hampton Photoelectric Smoke
- Auto or manual addressing
- 360° red/green LED
- Magnet test feature
- Day/nighto peration
- 4 selectable alarm thresholds
- Bi-directional short circuit isolators
Hampton Photoelectric Smoke Lite
- Manual addressing via handheld programmer
- 360° visible red LED
- Day/nighto peration
- 4 selectable alarm thresholds
Hampton Relay Base
- Direct activation of external devices
- Conduit adaptor available
Hampton Standard Base
- Lowp rofile
- Secure cable terminations
- Deep base variant
- Conduit adaptor available
Hampton Multicriteria
- Combined optical smoke and heat sensor
- Auto or manual addressing
- 360° red/green LED
- Magnet test feature
- Day/nighto peration
- 9 selectable alarm thresholds
- Bi-directional short circuit isolators
Hampton Multicriteria Lite
- Combined Optical smoke and heat sensor
- Manual addressing via handheld programmer
- 360° visible red LED
- 9 selectable alarm thresholds
Hampton Class AIR & B Heat
- A1R and B classification
- Low thermal intertia
- Auto or manual addressing
- 360° red/green LED
- Magnet test feature
- Bi-directional short circuit isolators
Hampton Heat Lite
- A1R and B classification
- Low thermal intertia
- Manual addressing via handheld programmer
- 360° visible red LED
Call Points
Hampton Resettable
- Mimics feel of break-glass
- Indicator drops into view upon activation
- Reset using a special key
- Auto or manual addressing
- Bi-directional short circuit isolators
- Red/green panel driven LED

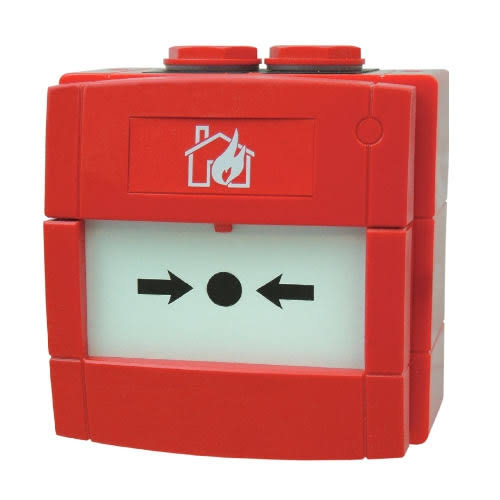

Hampton Waterproof Resettable
- IP67 rated
- Mimics feel of break-glass
- Mimics feel of break-glass
- Reset using a special key
- Auto or manual addressing
- Bi-directional short circuit isolators
- Red/green panel driven LED
Options
Hampton Decorline
- Special finishes for Hampton detectors, specified by the customer, unobtrusive and suitable for any location
Hampton Conventional
- A full range of conventional detectors, sounders, beacons and call points are available
Modules

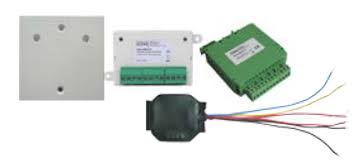

Hampton Single Input
- short, alarm and open conditions
- Available in wall mount, mini,micro and DIN rail formats
- Auto or manual addressing
- Bi-directional short circuit isolators
- Red/green panel driven LED
- Plug in connections

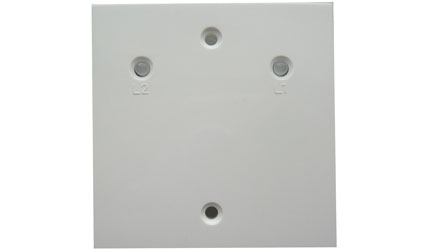

Hampton Monitored Output
- Output monitored for open and short circuits
- Available in wall mount, mini,micro and DIN rail formats
- Auto or manual addressing
- Bi-directional short circuit isolators
- Red/green panel driven LED
- Plug in connections

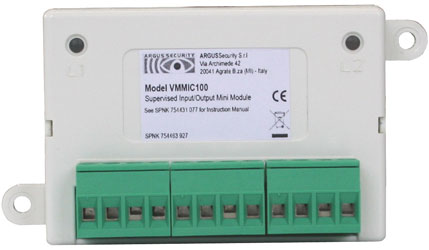

Hampton Single Input and Single Relay Output
- Input monitored for normal,short, alarm and open conditions
- Programmable Form C changeover contact for auxiliary device control
- Available in wall mount, mini and DIN rail formats
- Auto or manual addressing
- Bi-directional short circuit isolators
- Red/green panel driven LED
- Plug in connections

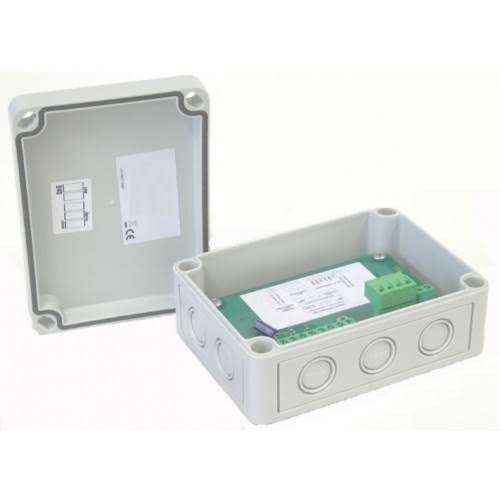

Hampton Conventional Zone Module
- Compatible with majority of Eu detectors
- External or loop powered
- Adjustable current limit by panel
- Identifies all conditions on conventional zone
- Auto or manual addressing
- Bi-directional short circuit isolators
- Programmable Form C changeover relay included
Hampton Single Relay Output
- Programmable Form C changeover contact for auxiliary device control
- Available in wall mount, mini,micro and DIN rail formats
- Bi-directional short circuit isolators
- Red/green panel driven LED
- Plug in connections

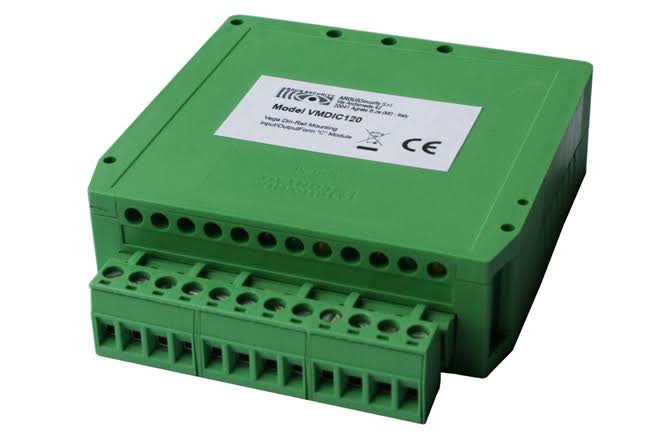

Hampton Single Input and Supervised Output
- Input monitored for normal,short, alarm and open conditions
- Output monitored for open and short circuits
- Available in wall mount, mini,micro and DIN rail formats
- Bi-directional short circuit isolators
- Red/green panel driven LED
- Plug in connections
Sounders and Beacons

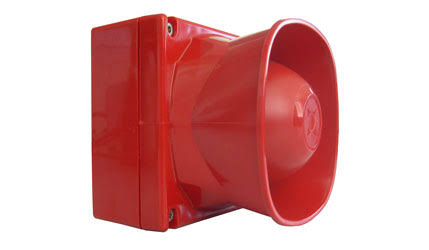

Hampton Waterproof Wall Sounder
- Low current consumption
- Dual, continuous or pulsed tone selectable from panel
- Rotary volume control
- Auto or manual addressing
- Bi-directional short circuit isolators

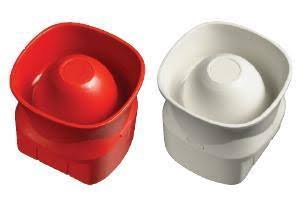

Hampton Wall Sounder
- Low current consumption
- Available in red or white
- Dual, continuous, pulsed, slow whoop, continuous or sweep tone
- Volume and tone selectable by DIP switch
- Auto or manual addressing
- Bi-directional short circuit isolators
Hampton EN54-23 Wall Sounder Beacon
- EN54-23 approved
- Low current consumption
- Volume and tone selectable by DIP switch
- Auto or manual addressing
- Bi-directional short circuit isolators

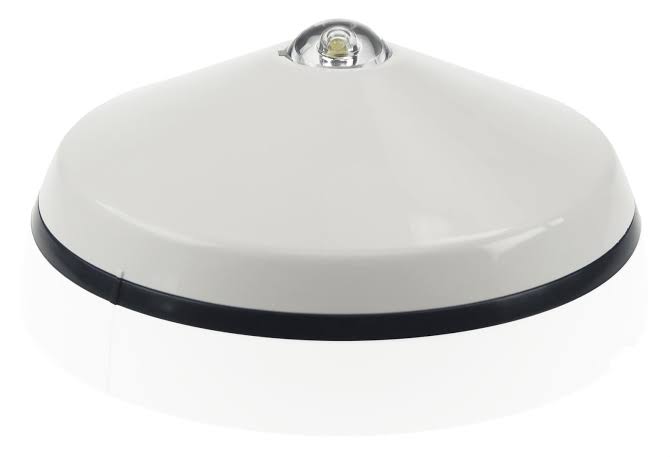

Hampton Conventional Beacon
- EN54-23 C 3 —7.5 classification
- Low current consumption
- Can be driven directly from an addressable output or wireless battery output module.
- Two variants: 1 Hz flash (20mA@24V} and 0.5Hz (10mA @ 24V)
- Low profile
Hampton Sounder Base
- Low current consumption
- Up to 31 selectable tones
- Volume and tones programmable at panel
- Individually controllable LED beacon
- Auto or manual addressing
- Bi-directional short circuit isolators

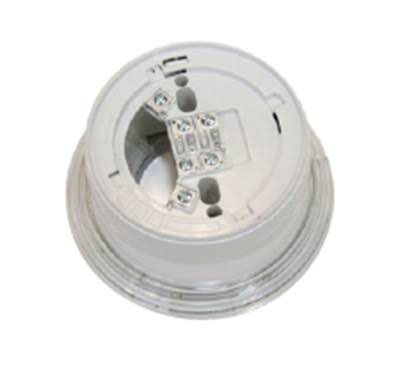

Hampton Slave Sounder Base
- Low current consumption
- No addressing required
- Volume & tones selectable by DIP switch
- Available with or without LED beacon
Accessories
Hampton Accessories
- Allows manual addressing of Hampton devices
- Detectors directly mounted. Other devices via cable
- Provides additional device parameters

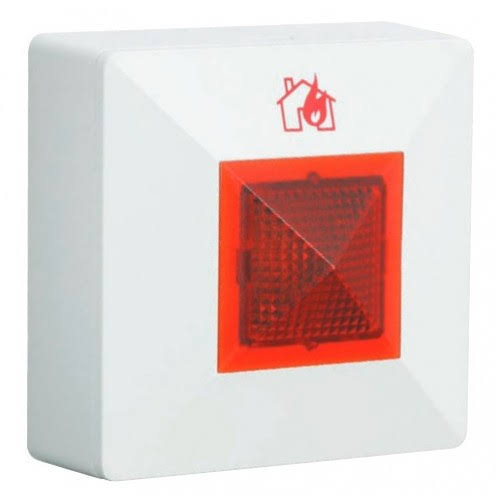

Hampton Intelligent Remote indicator
- Low current consumption
- Output programmable by panel
- Auto or manual addressing
- Bi-directional short circuit isolatOFS
AlarmCalm: False Alarm Management
Hampton AlarmCalm Button
- Intelligent loop device
- Intelligent loop device
- Used with AlarmCalm software Used with AlarmCalm software
